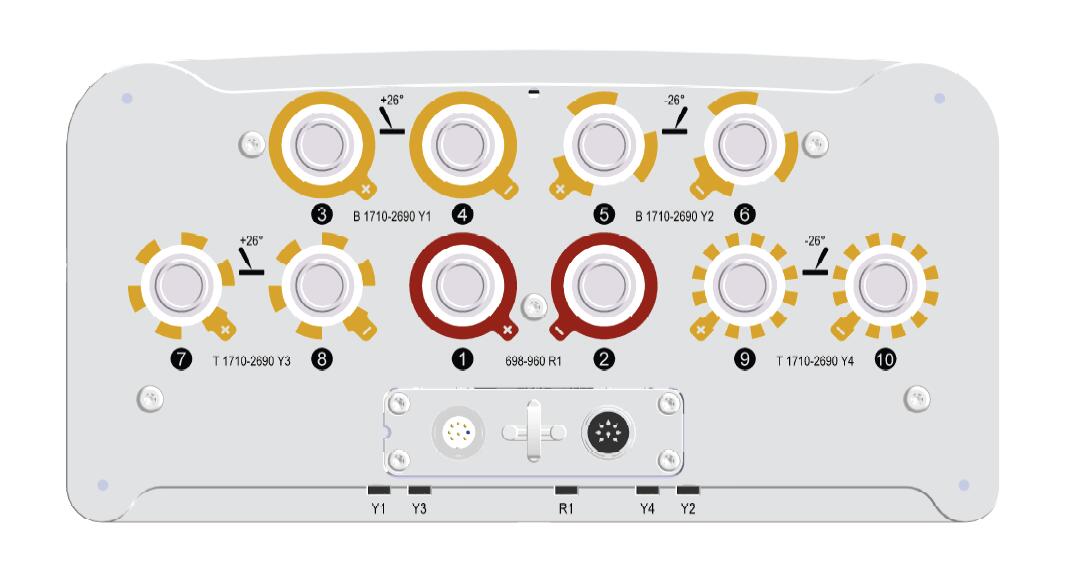

1LB4MB 65°/32° 16/19dBi Hybrid Antenna
ATelektrikal Specifications
Saklaw ng Dalas (MHz): | 698-960(R1) | 1710-2690(Y1,Y2) | 1710-2690(Y3,Y4) | ||||||
698-806 | 806-880 | 880-960 | 1710 -1880 | 1880 -2170 | 2300 -2690 | 1710 -1880 | 1880 -2170 | 2300 -2690 | |
Gain (dBi): | 15.5 ±0.5 | 15.7 ±0.5 | 16.0 ±0.5 | 16.3 ±0.5 | 17.8 ±0.5 | 18.5 ±0.5 | 16.0 ±0.5 | 17.5 ±0.5 | 18.1 ±0.5 |
Pagkawala ng Pagbabalik (dB): | >14 (VSWR<1.5) | ||||||||
Polarisasyon: | ±45° | ||||||||
Horizontal Beam Pointing (°): | ±29 | ±25 | ±23 | ±29 | ±25 | ±23 | |||
Pahalang na 3dB Beamwidth (°): | 68 | 67 | 64 | 35 | 29 | 25 | 35 | 29 | 25 |
Vertical 3dB Beamwidth (°): | 12.6 | 11 | 10 | 11.5 | 9.8 | 8.3 | 11.5 | 10.1 | 8.5 |
Electrical Downtilt (°): | 2-12 Malayang Tuloy-tuloy na Naaayos | ||||||||
1st Upper Sidelobe Suppression(dB) : | 20 | 21 | 20 | 16 | 17 | 16 | 16 | 17 | 16 |
Front to Back Ratio (dB): | 27 | 29 | 28 | 25 | 27 | 28 | 25 | 26 | 29 |
Polarization Isolation (dB): | >25 | ||||||||
Interband Isolation (dB): | >25(R1//Y1, Y2//Y3, Y4) | ||||||||
Max. Power Bawat Port (W): | 250 | 200 | 200 | ||||||
Kabuuang Power para sa Antenna (W): | 1000 | ||||||||
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | ||||||||
Impedance (ohm): | 50 | ||||||||
Proteksyon sa Kidlat: | DC Grounded | ||||||||
Uri ng Konektor: | 10×4.3-10 Babae | ||||||||
Mekaniko Dminuto
Mga Dimensyon ng Antenna (mm): | 2015×339×169 |
Mga Dimensyon ng Pag-iimpake (mm): | 2335×405×240 |
Net Weight/Bracket ng Antenna (kg): | 31/5.7 |
Kabuuang Timbang ng Antenna (kg): | 42 |
Natagpuan namin ang Materyal: | Fiberglass |
Pipe OD (mm): | 70-114 |
Mga Mounting Kit (Kasama): | BA.K.04.00011, Adjustable Downtilt 0°-8° |
