Mga Detalye ng Elektrisidad
Saklaw ng Dalas (MHz): | Beam 1 (Port 3/4, Port 5/6, Kaliwa) | |||
1710-2690(Y2,Y3) | ||||
1710-2170 | 2300-2500 | 2500-2690 | ||
Average na Gain ng lahat ng Beam Tilts(dBi): | Ibaba | 18.4±0.7 | 19.6±0.6 | 19.6±0.5 |
Nangunguna | 18±0.7 | 19.1±0.6 | 19.2±0.5 | |
Pahalang na 3dB Beamwidth (°): | 30±3 | 23±2 | 22±2 | |
Horizontal Beam Pointing (°): | +35 | +35 | +35 | |
Vertical 3dB Beamwidth (°): | 10.5±1 | 8±0.7 | 7.8±0.5 | |
1st Upper Sidelobe Suppression (dB): | 17 | 16 | 16 | |
Front to Back Ratio (dB): | 28 | 28 | 28 | |
CPR sa Boresight (dB): | 25 | 27 | 28 | |
Saklaw ng Dalas (MHz): | Beam 2 (Port 1/2, Port 7/8, Middle) | ||
1710-2690(Y1,Y4) | |||
1710-2170 | 2300-2500 | 2500-2690 | |
Average na Gain ng lahat ng Beam Tilts(dBi): | 18.2±0.7 | 19.5±0.5 | 19.5±0.5 |
Pahalang na 3dB beamwidth (°): | 33±3 | 25±2 | 25±2 |
Horizontal Beam Pointing (°): | 0 | 0 | 0 |
Vertical 3dB beamwidth (°): | 10.3±1.1 | 8±0.7 | 7.8±0.5 |
1st Upper Sidelobe Suppression (dB): | 13 | 13 | 15 |
Front to Back Ratio (dB): | 26 | 29 | 30 |
CPR sa Boresight (dB): | 24 | 23 | 26 |
Saklaw ng Dalas (MHz): | Beam 3 (Port 9/10, Port 11/12, Kanan) | |||
1710-2690(Y5,Y6) | ||||
1710-2170 | 2300-2500 | 2500-2690 | ||
Average na Gain ng lahat ng Beam Tilts(dBi): | Ibaba | 18.3±0.7 | 19.3±0.6 | 19.4±0.5 |
Nangunguna | 18±0.7 | 19±0.6 | 19.1±0.5 | |
Pahalang na 3dB Beamwidth (°): | 30±3 | 23±2 | 22±2 | |
Horizontal Beam Pointing (°): | -35 | -35 | -35 | |
Vertical 3dB Beamwidth (°): | 10.5±1.1 | 8±0.7 | 7.9±0.5 | |
1st Upper Sidelobe Suppression (dB): | 17 | 18 | 16 | |
Front to Back Ratio (dB): | 28 | 28 | 28 | |
CPR sa Boresight (dB): | 26 | 25 | 27 | |
Saklaw ng Dalas (MHz): | Lahat ng Beam (Port 1 hanggang 12) | ||
1710-2690(Y1,Y2,Y3,Y4,Y5,Y6) | |||
1710-2170 | 2300-2500 | 2500-2690 | |
Pagkawala ng Pagbabalik (dB): | >14 (VSWR<1.5) | ||
Polarisasyon (°): | ±45 | ||
Electrical Downtilt (°): | 2-12 | ||
Paghihiwalay (dB): | >25 | ||
Max. Power Bawat Port (W): | 200 | ||
Kabuuang Power para sa Antenna (W): | 1000 | ||
Intermodulation IM3 (dBc): | <-150 (2×43dBm) | ||
Impedance (ohm): | 50 | ||
Proteksyon sa Kidlat: | DC Grounded | ||

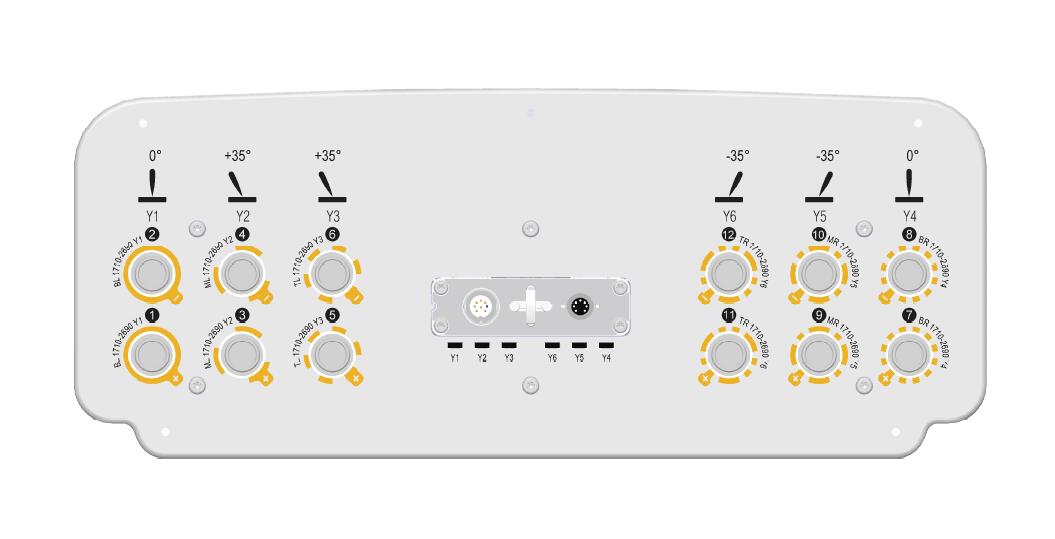

Uri ng Konektor: | 12×4.3-10 Babae | ||
Mekanikal na Data
Mga Dimensyon ng Antenna (mm): | 2668×498×197 |
Mga Dimensyon ng Pag-iimpake (mm): | 2890×580×285 |
Net Weight/Bracket ng Antenna (kg): | 42.5/5.7 |
Kabuuang Timbang ng Antenna (kg): | 55 |
Natagpuan namin ang Materyal: | Fiberglass |
Pipe OD (mm): | 70-115 |
Mga Mounting Kit (Kasama): | BA.K.04.00069471，Adjustable Downtilt 0°-8°(0°-8°sa 1°hakbang) |
